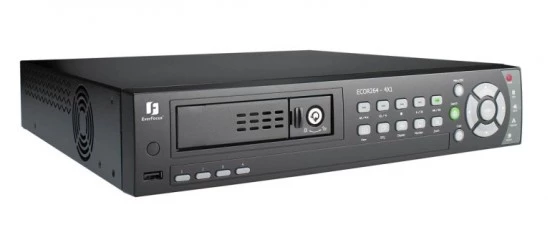

EverFocus 16-ch DVR (without DVDRW)
Model: ECOR264-16X1RGR
This new EverFocus digital video recorder series is based on H.264 compression technology, resulting in enhanced recording capacity and improved network image transmission speed with high image quality. The choice of 4, 9 or 16 camera configuration with real-time recording (120/100 D1 fps or 480/400 CIF fps in total, frame rate independently configurable over cameras) along with comprehensive features including remote viewing directly on Smart Phone and PDA protable devices and extended event recording settings enable the almost universal application of this DVR series.
H.264 Compression format for efficient disk utilization and network bandwidth conservation
Real time recording rate and playback rae for all cameras
Normal and event recording frame rate can be set independently for each camera
Main Monitor: VGA (800x600 or 1280x1024*) or BNC output
Call Monitor: additional composite BNC output with multiplex and/or sequenced views
Simultaneous recording at D1 or 2CIF with real time streaming at CIF for remote web viewing to conserve bandwidth
Pentaplex Operation (simultaneous live, recording, playback, archiving and remote viewing)
Free EverFocus DDNS Service - static IP address is not required for reliable remote access
User friendly GUI with graphical icons and visual indicators
Supports eSATA (reserved for future use), (Hot swappable model does not support eSATA)
Supports Smart Phone and PDA for mobile monitoring
Multiple Control Inputs: mouse / front panel / IR remote controller / EKB500 keyboard
Built-in record time calculator for fast recording estimation
Express Setup: A unique menu option for quick & easy installation
Express Archive: Archive video instantly (to USB) while playing back
Express Playback: Simply point, click and drag the playback bar to view desired recordings
Express Search: Use the intuitive playback bar with simple drag & drop operations
Smart Search: Quickly identify motion in areas of interest from recorded video
Snapshot Search: Extract images from recorded video at sepcific intervals to quickly locate events
Remote configuration support from the built-in web interface
Gigabit Ethernet interface for remote network viewing and control
On-screen PTZ control via mouse or front panel
Supprot for up to 1 Hot Swappable HDD or 2 fixed internal HDD*
Built-in DVD burner*
2 USB2.0 ports (1 located on front panel, 1 located on back panel) for video archive and mouse usage
Multi-language support
Watermark capabilities to identify intentional modifications to exported data
19" Rack mountable
USB mouse and IR remote control included
(* Feature may not be available on all models)
