Axis AXS-T91L61
Versatile connection with RJ45 or IDC

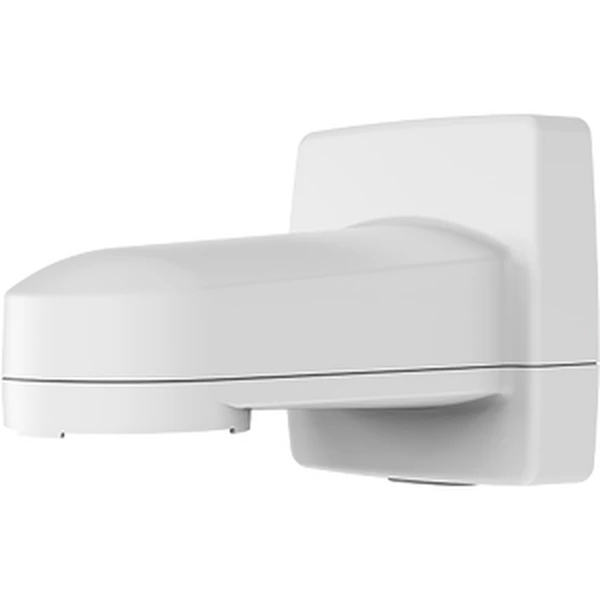

AXIS T91L61 Wall-and-Pole Mount gives the installer a choice of using either RJ45 or IDC (insulation-displacement contact) connector for the installation. It comes with a built-in cable with an Ethernet IP66 RJ45 connector, which facilitates the installation and prevents water and dust to enter the network camera.
General Supported products AXIS Q60 Series AXIS Q61 Series AXIS P55 Series AXIS P56 Series AXIS Q37 Series Casing Material: Powder-coated aluminum casing Color: White NCS S 1002-B Sustainability PVC free Connectors Out: IP66 RJ45 Ethernet (male) In: RJ45 Ethernet (female), IDC Environment Indoor Outdoor Operating conditions -50 °C to 65 °C (-58 °F to 149 °F) Humidity 10–100% RH (condensing) Storage conditions -40 °C to 65 °C (-40 °F to 149 °F) Approvals Safety IEC/EN/UL 60950-1, IEC/EN/UL 60950-22 Environment IEC 60721, IEC 60721-4 Class 4M3, MIL-STD 810G 509.5, IP66, NEMA 250 Type 4X, RoHS, WEEE Impact IEC 62262 IK10 Dimensions 280 x 174 x 152 mm (11 x 7 x 6 in) Weight 1.85 kg (4 lb) Maximum load 30 kg (66 lb) Cable routing Back: Cable hole Bottom: 3/4" Conduit entrance Included accessories Installation Guide Optional accessories AXIS ACI Conduit Adapters AXIS T91A64 Corner Bracket Stainless steel straps 700 mm (28 in), 1 pair Stainless steel straps 1450 mm (57 in), 1 pair For more accessories, see www.axis.com Warranty Axis 3-year warranty, see www.axis.com/warranty Environmental responsibility: www.axis.com/environmental-responsibility
