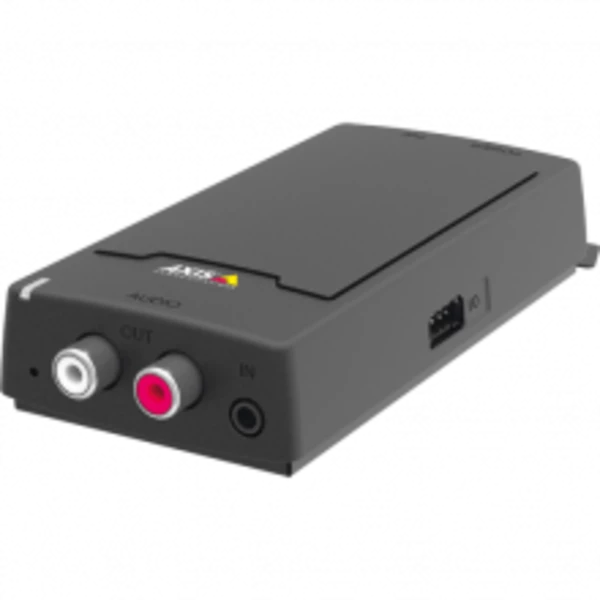

AXIS C8033 Network Audio Bridge

AXIS C8033 Network Audio Bridge is a smart and easy solution that connects and combine analog and network audio systems. You’ll be able to play music from analog sources in your Axis network audio system. And add Axis network speakers to your analog system. Which means you can reap the many benefits of our speakers while protecting the value of your investment in analog audio equipment.

Models AXIS C8033 Network Audio Bridge Audio Audio streaming One-way/two-waya , mono Audio compression AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis µ-law 16 kHz, WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Constant and variable bit rate. Sampling rate from 8 kHz up to 48 kHz. Audio input/output Mic-in, line-in, line-out Frequency response 20 Hz - 20 kHz Maximum output voltage 0.91 Vrms Maximum input voltage 2.2 Vrms Network Security Password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, Digest authentication, User access log, Centralized Certificate Management Supported protocols IPv4/v6c , HTTP, HTTPSb , SSL/TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP (Cisco, Avaya, Asterisk) System integration Music streaming Music playback through AXIS Audio Player. Offline streaming from SD card and audio-in, online streaming support. Audio-in connector can be used as a streaming source. Voice announcement Pre-recorded voice announcements through AXIS Audio Player. Voice announcement through built-in SIP support for connection to any IP telephone/VoiP system and VAPIX support. Application Programming Interface Open API for software integration, including VAPIX®, AXIS Video Hosting System (AVHS) with One-click Connection, AXIS Camera Application Platform (ACAP) Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX Tested with various SIP client such as Cisco, Bria and Grandstream. Tested with various PBX suppliers such as Cisco and Asterisk. Audio synchronization Built-in audio synchronization for up to 50 speakers with unicast and hundreds of speakers with multicast. No additional speaker management software or hardware required. Event triggers Call, Virtual inputs, External input, AXIS Camera Application Platform (ACAP) Event actions Play audio clip, send SNMP trap, status LED File upload via HTTP, network share and email Notification via email, HTTP, HTTPS and TCP External output activation Built-in installation aids Test verification and identification General Casing IP20-rated Plastic and metal casing Color: Black NCS S 9000–N For repainting instructions and impact on warranty, contact your Axis partner. Memory 256 MB RAM, 512 MB Flash Power 8–28 V DC, max 4 W typical 1.85 W Power over Ethernet (PoE) IEEE 802.3af/802.3af Type 1 Class 2 ( max 4 W) Connectors RJ45 10BASE-T/100BASE-TX PoE I/O: 4-pin 2.5 mm terminal block for two configurable inputs/outputs Power: 2-pin 5.0 mm terminal block DC input Audio: 3 pole 3.5 mm, RCA line out Storage Support for microSD/microSDHC/microSDXC card Max. size 64 GB For SD card recommendations see www.axis.com Reliability Designed for 24/7 operation. Operating conditions -20 °C to 50 °C (4 °F to 122 °F) Humidity 10–85% RH (condensing) Storage conditions -40 °C to 65 °C (-40 °F to 149 °F) Approvals EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, Safety IEC/EN/UL 62368-1 Environment IEC/EN 60529 IP20, UL2043 Plenum rated, NEMA 250 Type 1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27 Dimensions H x D x W: 24 x 57 x 129 mm (1 x 2.2 x 5.1 in) Weight 102 g (0.22 lb) Included accessories Installation Guide, AVHS authentication key, Digital AXIS Camera Station license key, power connector, I/O connector, velcro Optional accessories Power supply For more accessories, see www.axis.com Video management software AXIS Camera Station, Video management software from Axis’ Application Development Partners available on www.axis.com/techsup/software Languages English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese Warranty Axis 3-year warranty and AXIS Extended Warranty option, see www.axis.com/warranty a. This product supports two-way audio, audio in and audio out. The product does not support two-way communication for conversations. b. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (www.openssl.org), and cryptographic software written by Eric Young (eay@cryptsoft.com). c. Audio synchronization with IPv4 only. Environmental responsibility: axis.com/environmental-responsibility

With AXIS C8033, you can connect analog audio sources to Axis network speakers. So you can play music from cell phones, tablets, computers, or a professional music streaming box, for example. On the other hand, you can also connect any digital source to your analog speaker system. That means you can take advantage of our AXIS Audio Player application to schedule playlists with music and voice and play prerecorded announcements. Or you can make unscheduled announcements via your VoIP system. And you can use smart zoning to send the right music and announcement to the right speakers at the right time.
