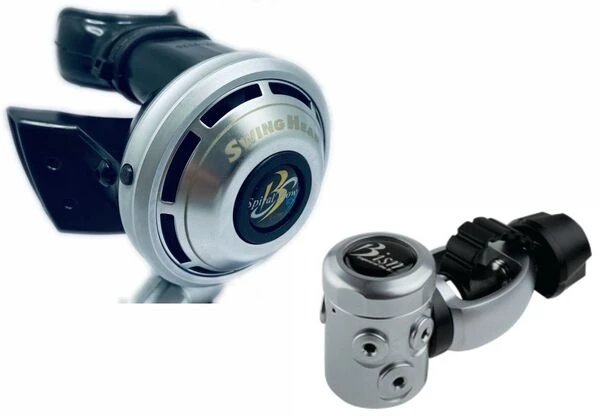

Bism GRADE-M re//brass Regulator
Realize light and stable feeling of inhalation by installation of spiral flow EX.
Always keep the highest mouth feeling with the swing head mechanism.
Equipping with a flow control device, achieve a feeling of inhalation that fitted an individual
Specification of the first stage is black chrome of re//brass original.
Spiral Flow EX installed model
1 st stage
weight 790g
Height 60mm
medium pressure port 2X PLP, 3/8-24UN
High pressure port 2 X HP 7/16-20UNF
body material: copper alloy
pressure resistance to 250bar
Decompression method balancing twin pistion
2nd Stage
Weight (including hose):440 g
Exhaust tee width 90 mm
Mouth piece material : silicon rubber
Body material POM resin
Face material: ABS resin
Working temperature range +5℃ to +50℃
Hose
Length 750mm
Diameter 6.5mm I.D. 13mm O D
Material vinyl chloride for inner tube & outer skin, copper alloy for coupling clamp.
Coupling screw: 3/8-24UNF
Max working pressure 15 bar
Hose guard standard equipment
